WLS spiral cable systems

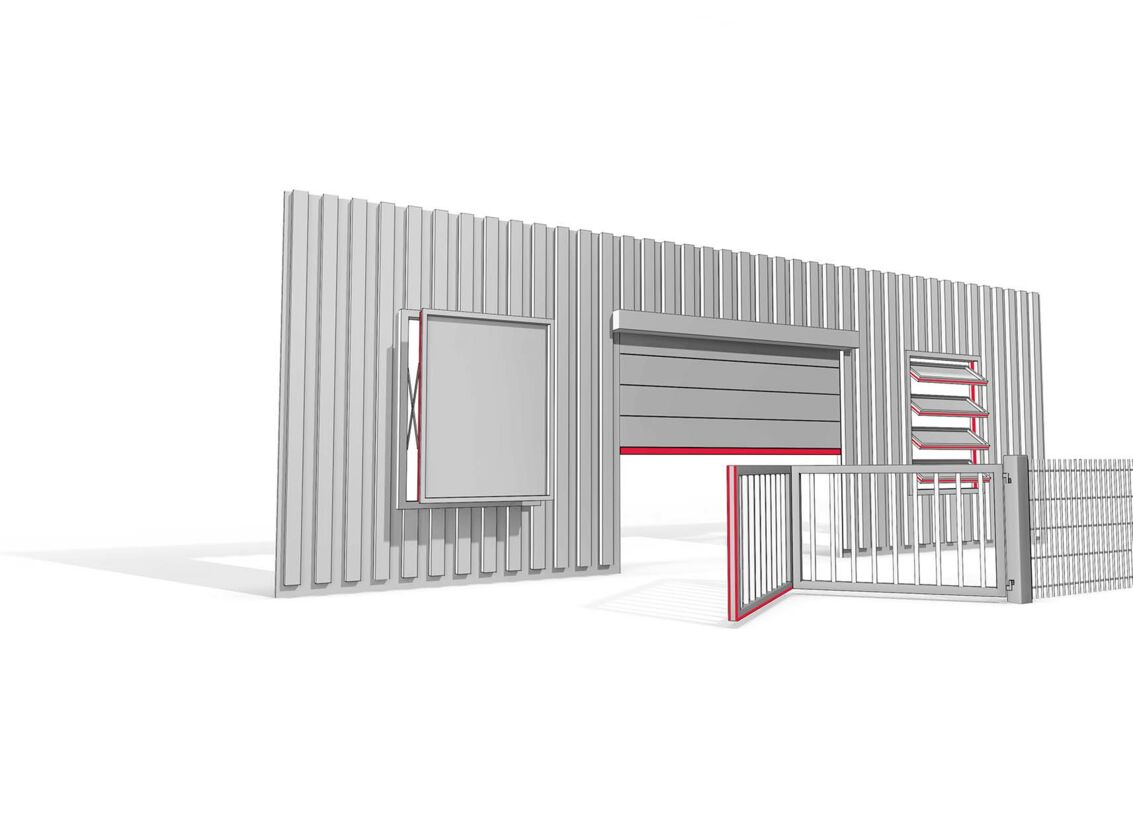

Wherever our sensors are attached to moving equipment, for instance safety edges on the movable parts of gates, they must transmit signals reliably. Thanks to its rugged design and easy installation, our mechanical signal transmission system is the practice-proven solution. Other advantages are quick and easy installation as well as maintenance-free design.
Technical Data
| Cable Number of wires / cross-section Operating voltage Max. load (at +25°C) |
special, wear-free, double insulated spiral cable 4x 0.14 mm² max. 48 V AC/DC max. 1.5 A eff. |
| Temperature range | -20 to +80°C |
| Moving speed | 40 m/min |
| Runway length | 1.5 m to 23.5 m |
| System lengths | 2.0 m to 26.0 m in fixed lengths: 2,3,4, and 6 m |
| Conduit rail |
aluminium, anodized, warp resistant
|
Advantages
-
Space-saving -
Robust and durable -
Weatherproof
Your benefits
- Fast installation
- Maintenance-free
- Short signal transmission times to comply with dynamic power and time parameters
- Long service life
- Runway up to max. 23.5 m
- High availability
Application
This product was developed specifically for installation in sliding gates.
